Attaching Dual Exchangers to Oil Industry Fume Incinerator
Shell and Tube Heat Exchanger in Oil Refinery: Key Takeaways
- The challenge: Design a custom oil refinery shell and tube heat exchanger to replace the existing unit connected to a thermal fume incinerator.
- The solution: We manufactured the entire thermal fume incinerator using in-shop, top-of-the-line equipment.
- The numbers: Unit handles 15,000 SCFM and recovers heat from 30,000 SCFM of 1,500°F.
Details
Industry
Oil refining
Lead Time
10-12 week post-design approval
Product
Oil refinery vertical shell and tube heat exchanger
Applied Capabilities
Steel manufacturing and installation
Materials
304 and 309 stainless steel
Location
St. Paul, Minnesota, USA
Heat and Air Specifications
Each handling 15,000 SCFM. Recover heat from 30,000 SCFM of 1,500°F.
How Did We Design and Install a Heat Exchanger for the Oil Industry?

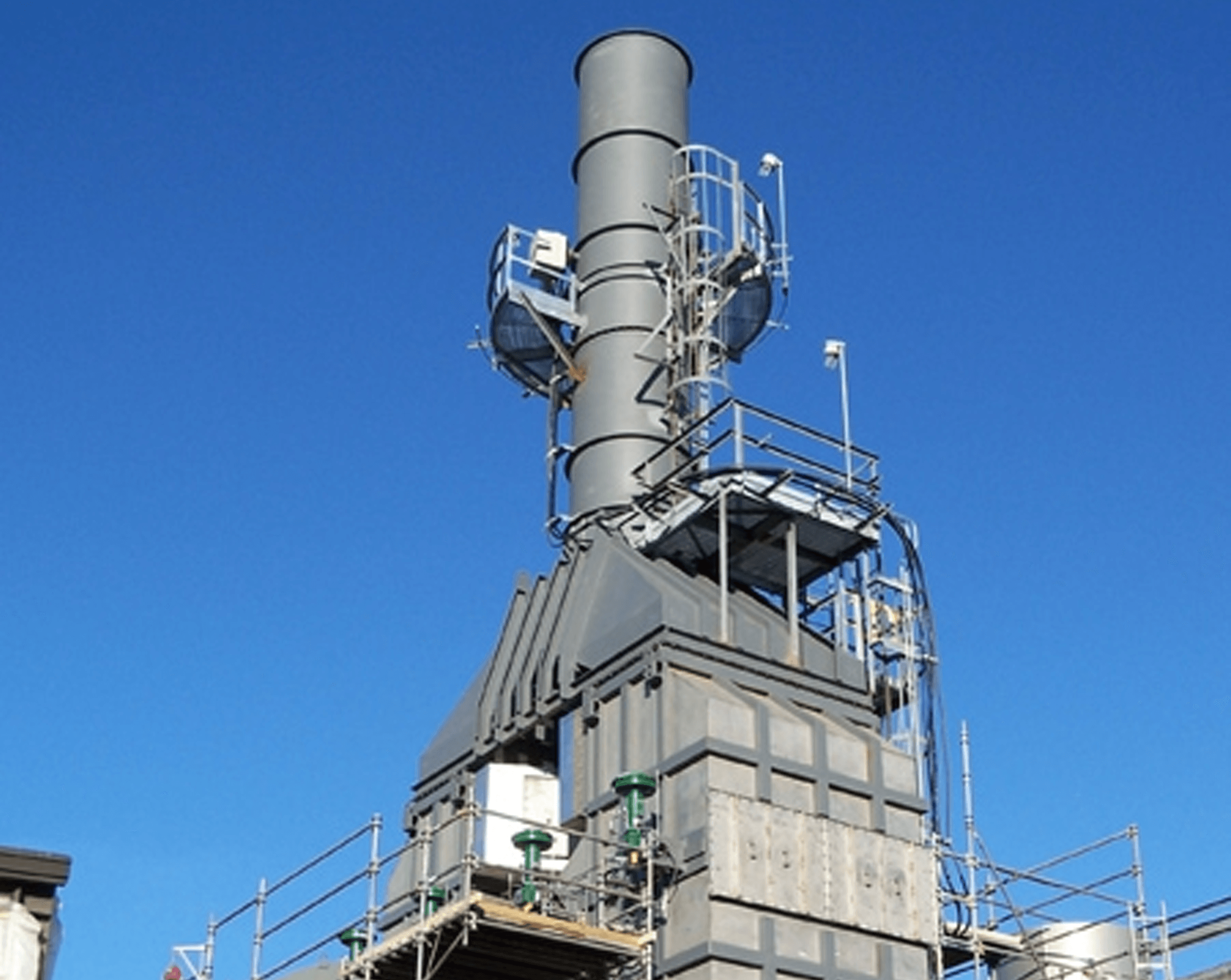

We manufactured the entire thermal fume incinerator using our in-shop, top-of-the-line equipment. The system consisted of CS hot air outlet plenum with internal insulation, stainless steel stacks and service platform, and stainless steel inlet ductwork. Some of the features of our system included four shell passes, vertical shell and tube heat exchangers (each handling 15,000 SCFM) installed in parallel, and hot heat exchangers with 309l S.S. tubes and tube sheets. In addition, both exchangers have intricate cold side faces and bypass dampers to recover heat from 30,000 SCFM of 1,500°F.
How Does an Oil Refinery Heat Exchanger Improve Efficiency?
We provided more efficiency while simultaneously showcasing our proprietary free-floating air seal expansion system. This system is the best in the industry and lasts longer than other units, while still maintaining the integrity of the unit and the seal between air streams. For this project, the shell was all dye penetrated tested, and was built while using our standard Quality Control Sheets/system.
Custom Heat Exchangers for the Oil and Gas Industry at PRE-heat
Pre-heat engineers harness decades of experience to design, build, and install custom heat exchangers tailored to the needs of our oil and gas industry clients. Recover heat, save energy, and lower bills with PRE-heat. Start your project today.
